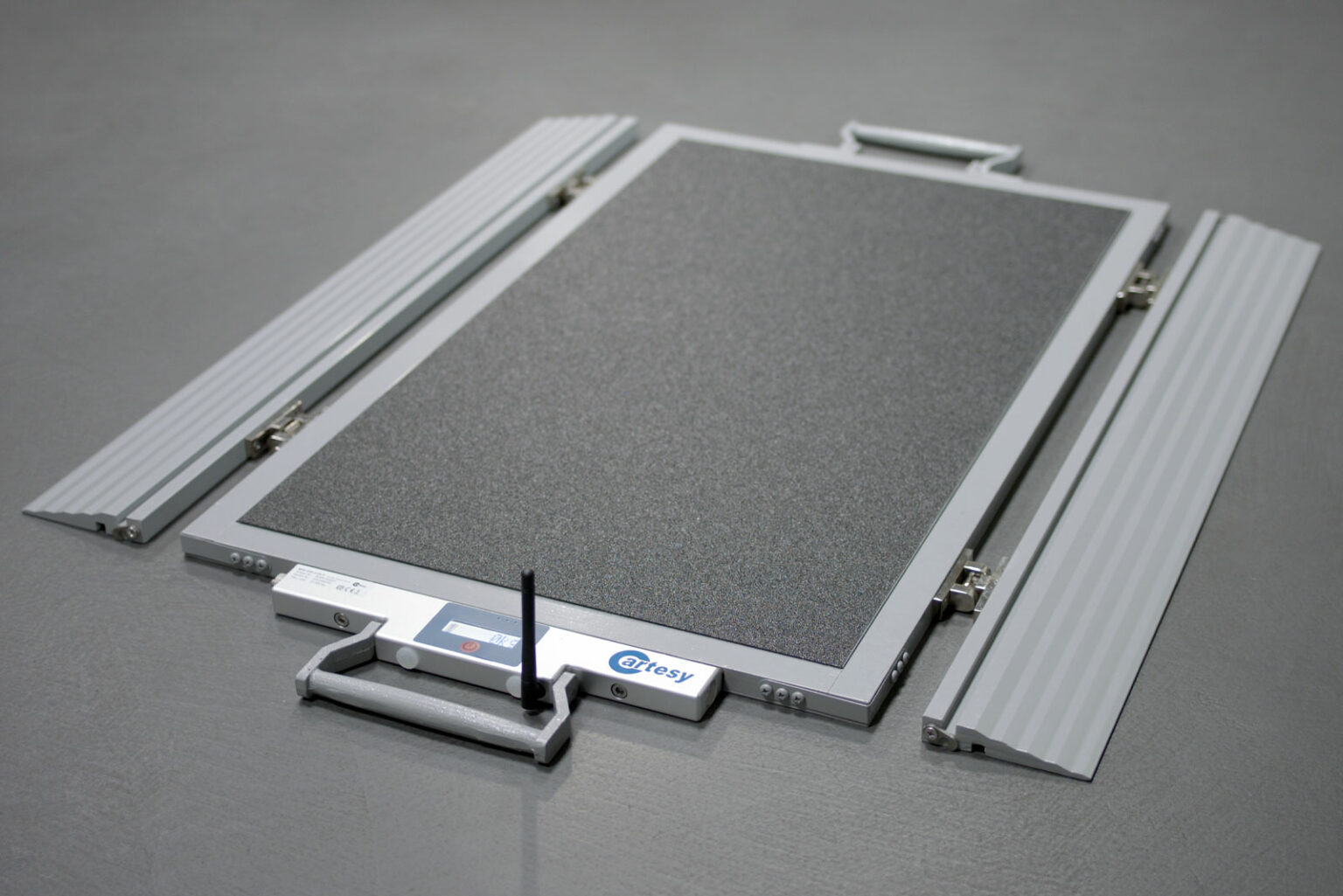

Mobile truck wheel load scale BFX-100-LCD-F [10 .000 kg]

Item number:

Artikelnummer 3E590-00205 Category Tag

Mobile truck wheel load scales for checking wheel and axle loads.
Integrated 8-digit LCD display with backlight, operating button and wireless data transmission.

1.899,00 plus VAT

  • Additional services


  • Measuring range: 0 – 10,000 kg
  • Division: 2 kg
  • Weight: approx. 21 kg (per scale)
  • Integrated battery
  • Serial interface RS-485
  • Aluminum alloy
  • Dimensions (LxWxH): 955 x 725 x 20 mm
  • Active weighing area (LxW): 715 x 420 mm
  • Compatible with inno!weight PC software (in combination with SUB-1020 wireless receiver)
  • Compatible with inno!weight PC software & apps (in combination with SUB-2020 wireless receiver)
  • Dynamic weighing mode available on request!



Areas of application (among others):

  • Overload control for trucks, trailers, caravans
  • Check weight while loading and unloading
  • Wheel load determination for wheel alignment
  • Determination of center of gravity for vehicles, trucks, helicopters and airplanes
  • Agricultural applications



Scope of delivery:

  • 1x BFX-100-LCD-F wheel load scale
  • 2x drive-on/off ramps
  • 1x Charging cable and power supply unit
  • 1x Documentation
  • 1x Test protocol
  • *Optionally available with ISO factory calibration (DIN376)
  • *Optionally available with ISO 17025 calibration certificate (DAkkS)






More information:

Datasheet-BFX-100-LCD-F
