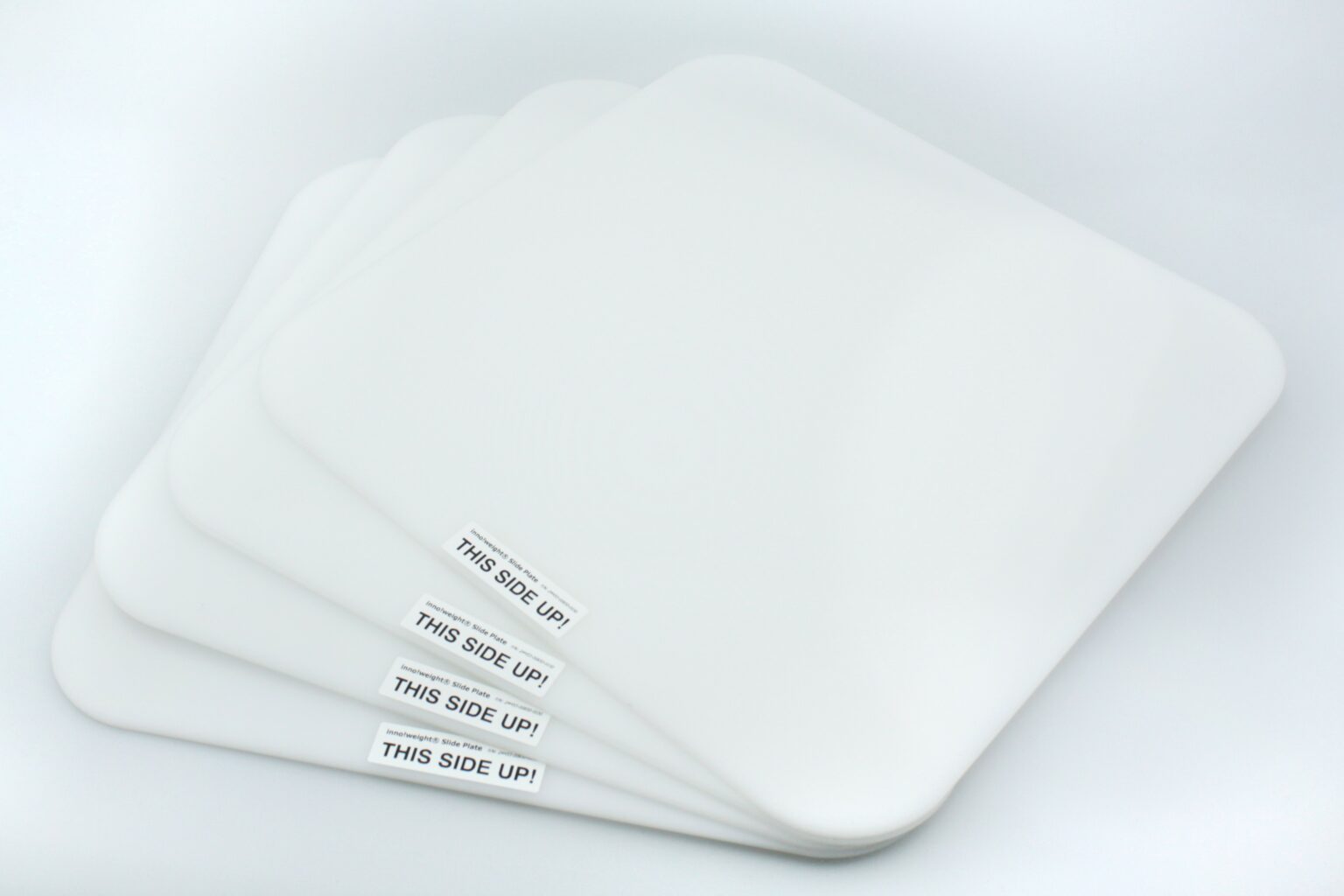

The inno!weight® Slide Plates for the inno!weight® weighing set

If the vehicle is lowered onto the scales using a lifting platform (and not driven onto the scales), the inno!weight® Slide Plates must be used to avoid tension (and therefore incorrect measurements). The shear stresses result from the tire camber, which pushes the scales outwards when the tires deflect. With the inno!weight® Slide Plates, the tire slides outwards and therefore does not stress the tire against the scales.

• Precise weighing results when weighing/lowering the vehicle with the lifting platform
• Simple – just place them on the scales under the tire
• Fits in the inno!weight® transport case

4x pieces slide plates
Dimensions (LxWxH): 300 x 300 x 3 mm
